0.157” x 1” Simpson Strong-Tie PDPAT Powder-Driven Top Hat Pin

$18.48

PRODUCT OVERVIEW

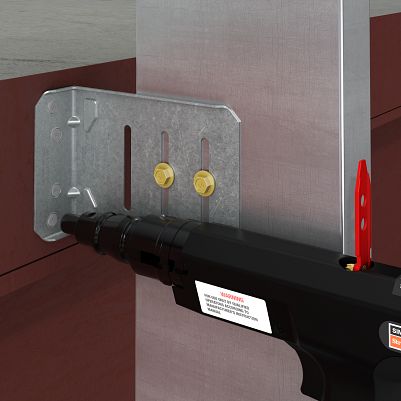

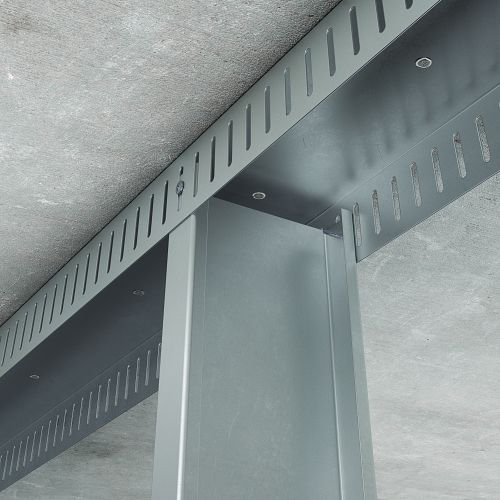

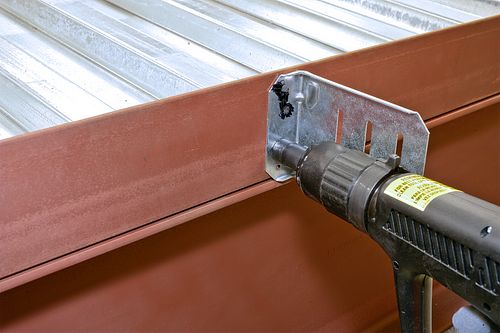

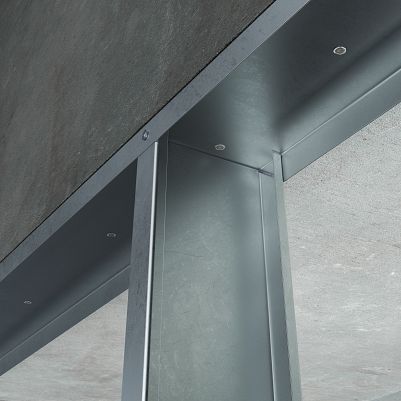

The Simpson Strong-Tie PDPAT Powder-Driven Top-Hat Pin PDPAT-100 0.157” x 1” is the fastener installers like for direct fastening applications. This powder-driven pin is made to fasten building materials to concrete, steel, and CMU. Engineered for a strong hold, the PDPAT consists of a 0.300"-diameter head with a 0.157"-diameter shank. Its steel top-hat assembly ensures fast loading and centering of the pin in the nosepiece of the tool. Ideal for cold-formed steel construction common applications include steel curtain walls, concrete floor slab, ceiling track, masonry veneer ledger, and drywall track.

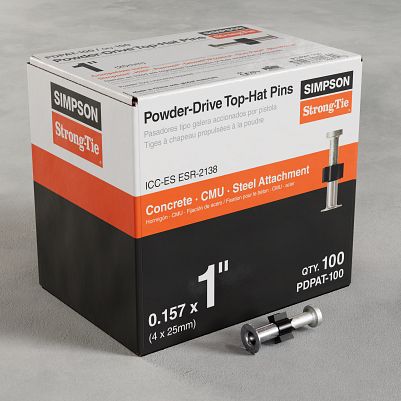

The PDPAT is highly compatible as it pairs with Simpson Strong-Tie powder-actuated tool systems as well as other general purpose tools. Use this fastener with the Strong-Tie PTP-27L, PT-27, PT-22A, and PT-22HA. Installers should note that the minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth. For added confidence, it is code listed per ICC-ES ESR-2138, Florida FL 15730 and LA RR25469. The PDPAT is sold as a box quantity of 100. Buy it today from Nail Gun Depot.

Compatible Tools: Simpson Strong-Tie powder-actuated tool systems, as well as other general purpose tools. Pair it with the Strong-Tie PTP-27L, PT-27, PT-22A, and PT-22HA.

Suitable Applications: Fasten building components to concrete, steel and CMU.

Interchangeable Fasteners: N/A

Please Note: Depending on availability, we may substitute this product with an identical interchange from another name-brand, such as Senco, Spotnails or SureFit. Product specifications, box count and build quality will remain identical, but may arrive in alternate packaging. If you have specific brand requirements for your fastener order, please specify in the comments section during checkout.
